Accessories
Your mountain bike comes with a bell, lighting, wheel reflectors, and pedals.
The frame is compatible with:
- front and rear mudguards
- stand
- bottle cage (on the top tube)
- saddle bag
- rear pannier rack (to be mounted on a stay or special rack for wide bikes with 150 mm rear wheel axles)
- child seat
Saddle / Seat post
ROCKRIDER ERGOFIT EVO saddle
Aluminium 31.6 mm seat post

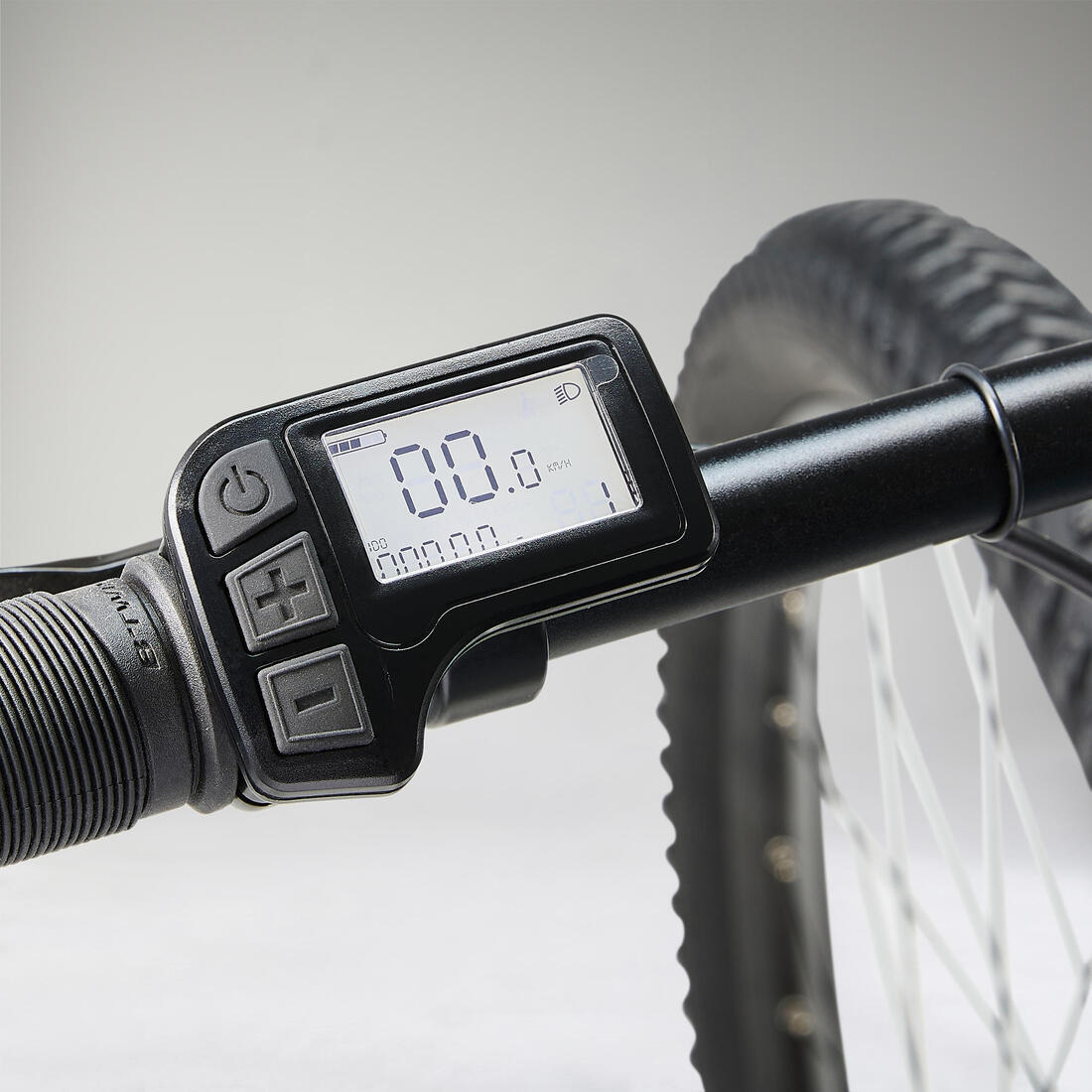

Display

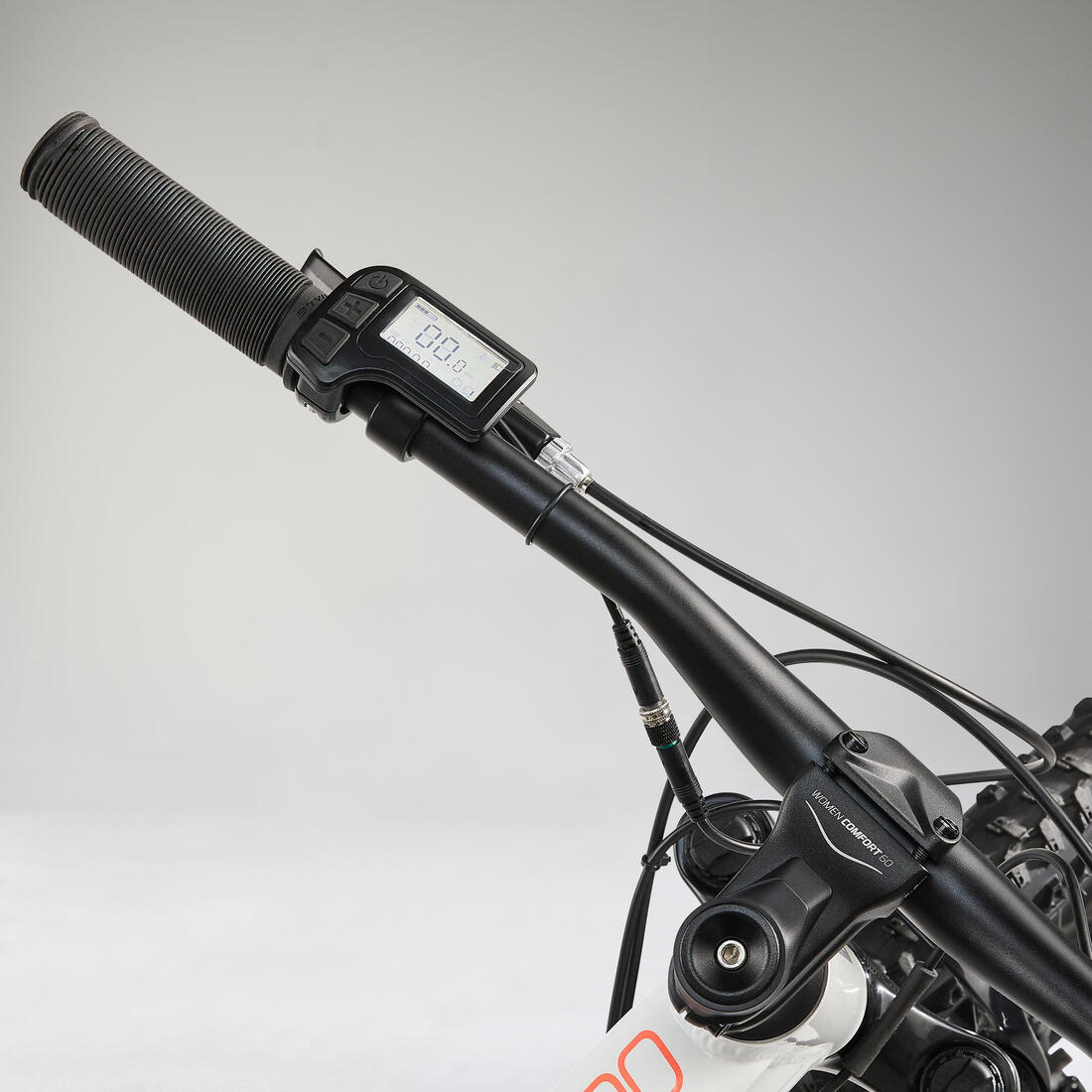

LCD control screen
3 assistance modes: Eco / Standard / Boost
Stats displayed: Stopwatch / Current speed / Average speed / Maximum speed / Distance covered / Total distance / Battery level / Remaining battery range (in km) / Active assistance mode / Reset
Weight
S: 22.2 kg
M: 22.3 kg
L: 22.4 kg
XL: 22.5 kg
Net weight without pedals
Wheels
Rockrider Tubeless Ready (needs tubeless tyres, special Presta valves and tyre sealant)
27.5", compatible with wide tyres: up to 2.5"
23 mm (width between hooks),
28 spokes at the front and 36 oversize spokes at the rear
6-bolt disc
Freehub: HG
PEDALS
Rockrider 520 Grip resin flat pedals
Brakes
Tektro TKD68
Mechanical disc brakes
1 piston
180 mm front and rear

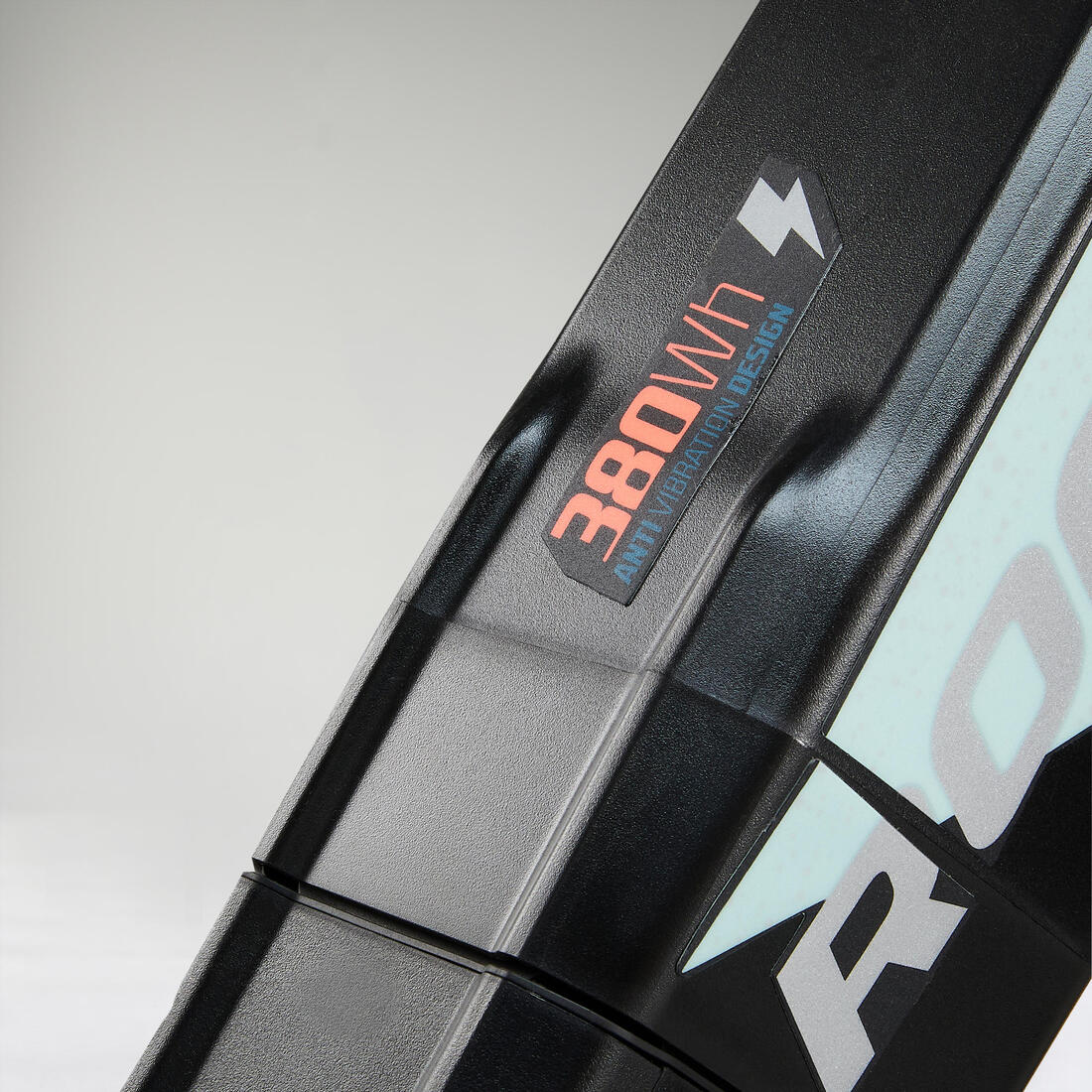

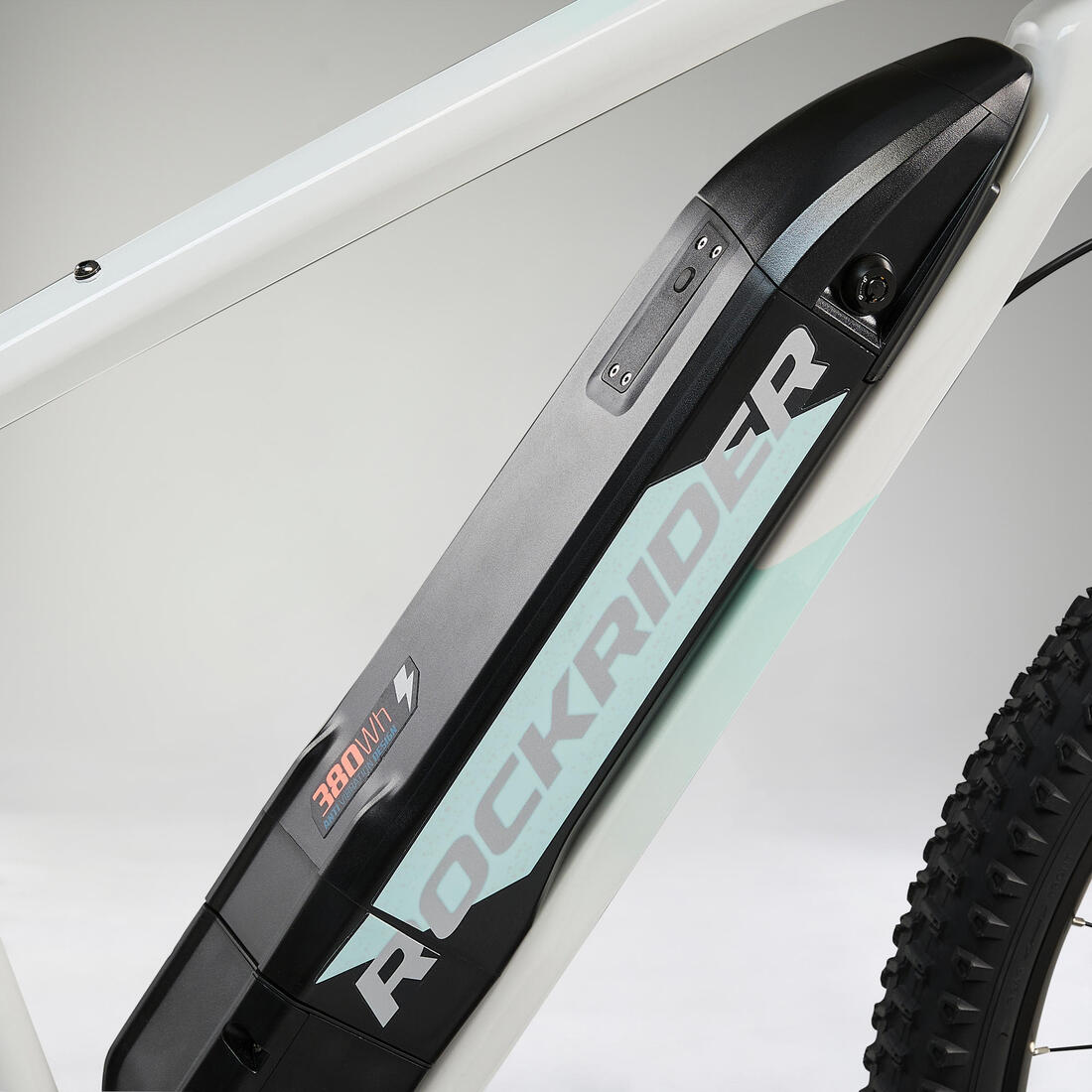

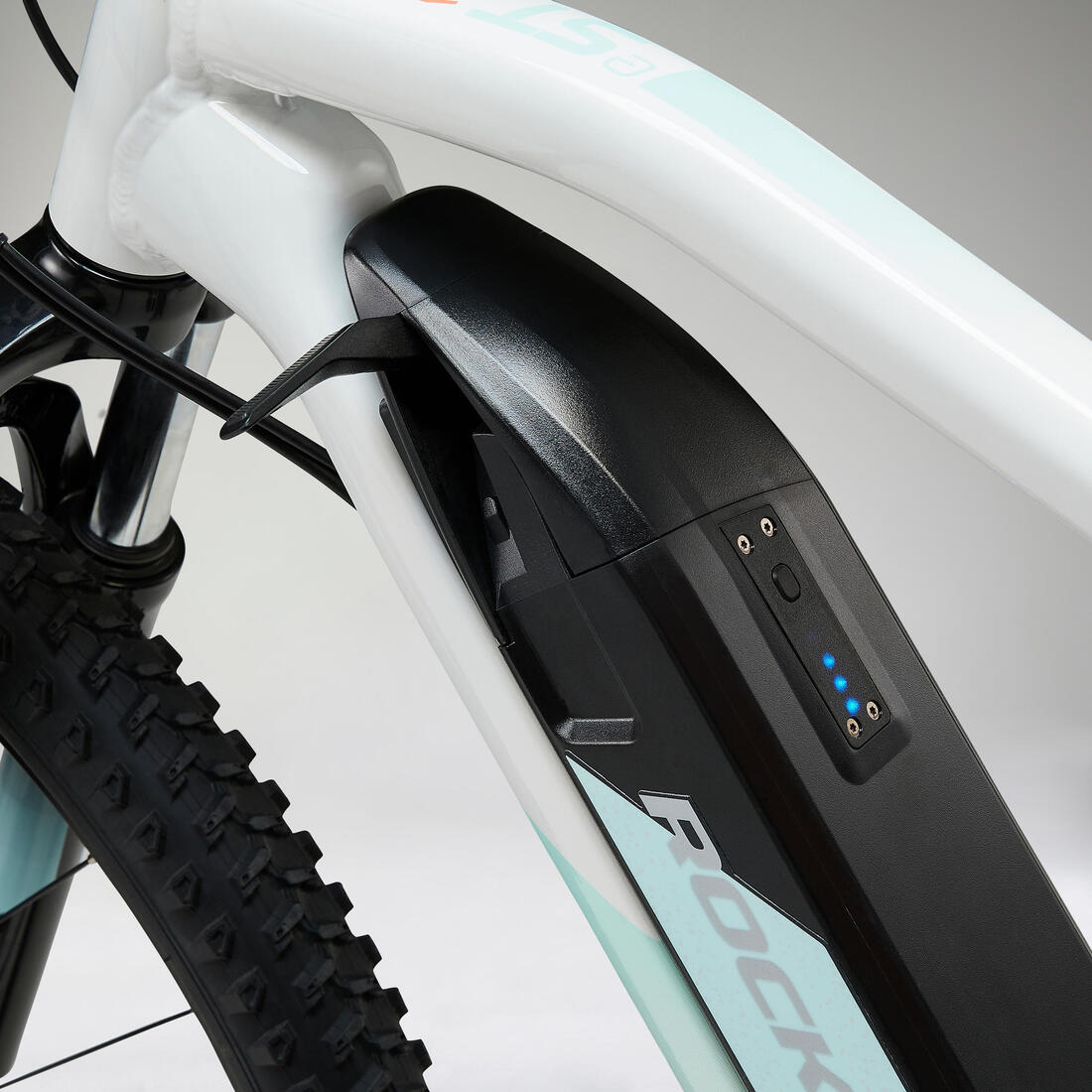

Battery
Samsung SDI or LG
Capacity: 380 Wh
Riding position
ROCKRIDER SPORT "oversize" 720 mm wide alu handlebar
The Rockrider stem is 70 mm (size S), 80 mm (size M/L), or 90 mm (size XL) and can be raised to 5 adjustment intervals: + 0mm, + 7.5mm, + 15mm, + 22.5mm, + 30mm.
ROCKRIDER SPORT "soft touch" grips

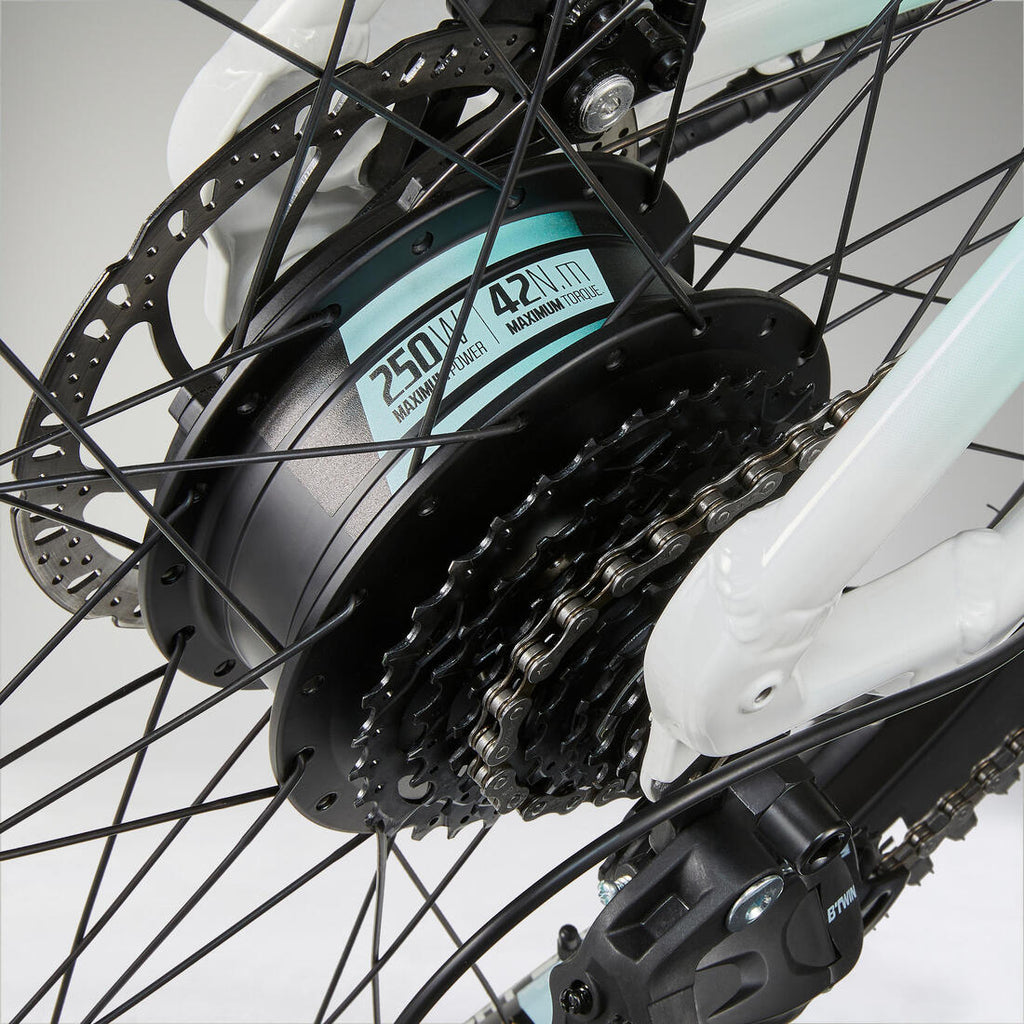

Motor
Motor co-developed with VISION
Hub position (in the wheel)
42 Nm torque
Cadence sensor
Max assistance: 250W
The electrical assistance cuts out over 25 km/h in accordance with European regulations

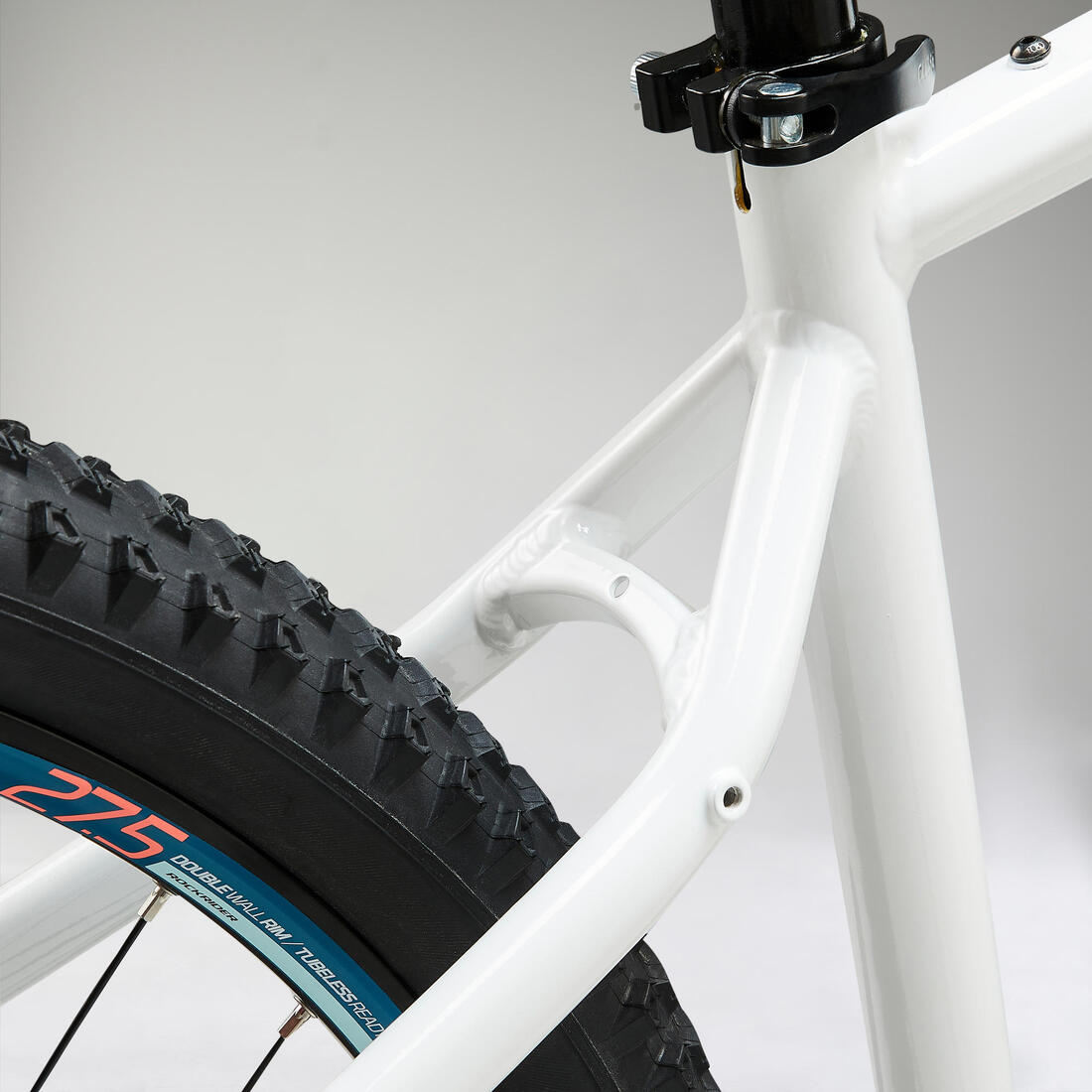

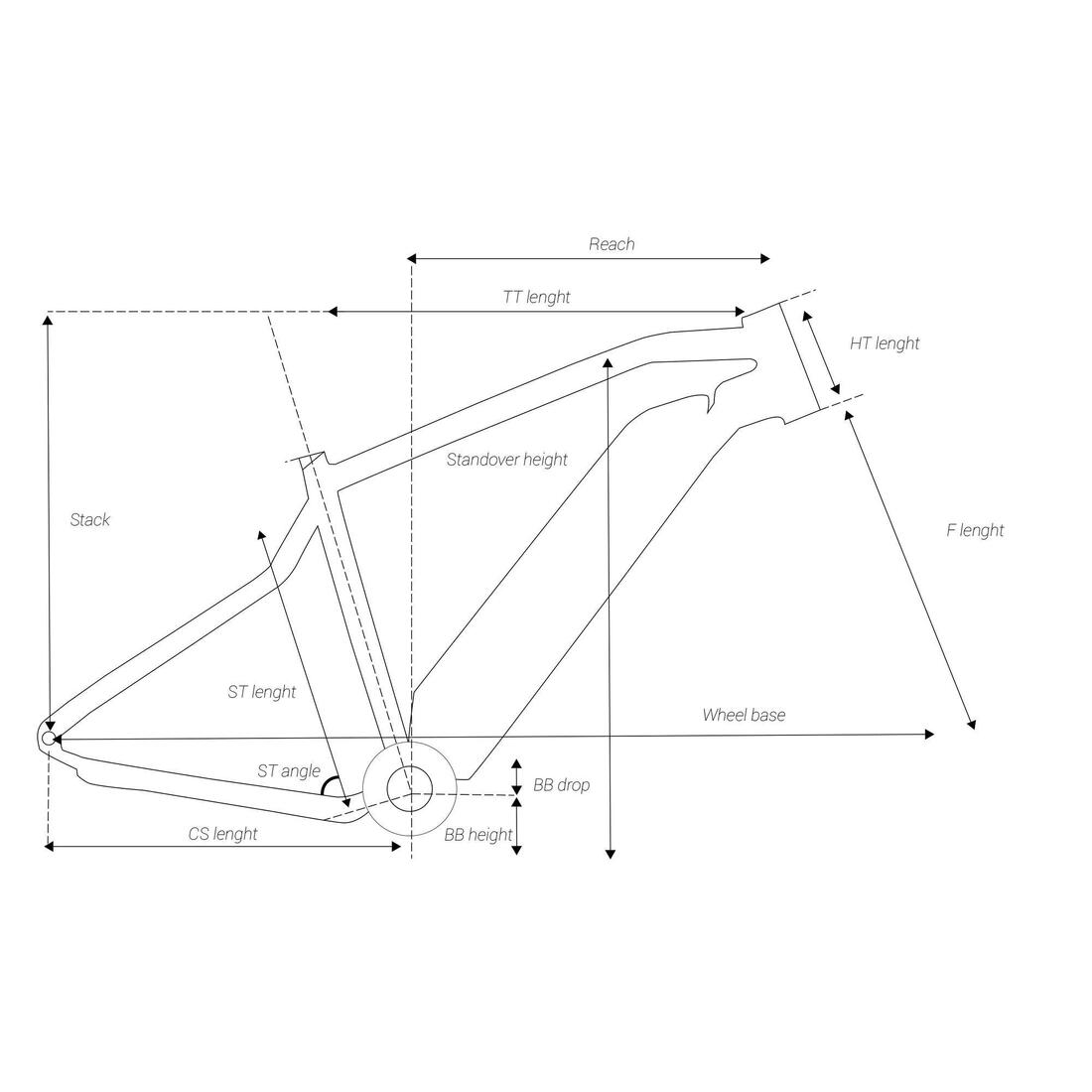

Frame
ROCKRIDER COMFORT GEOMETRY FRAME in 6061 aluminium with hydroformed tubes
Seat tube diameter: 31.6 mm
Straight head tube
1 bottle cage mounting point
Drive train

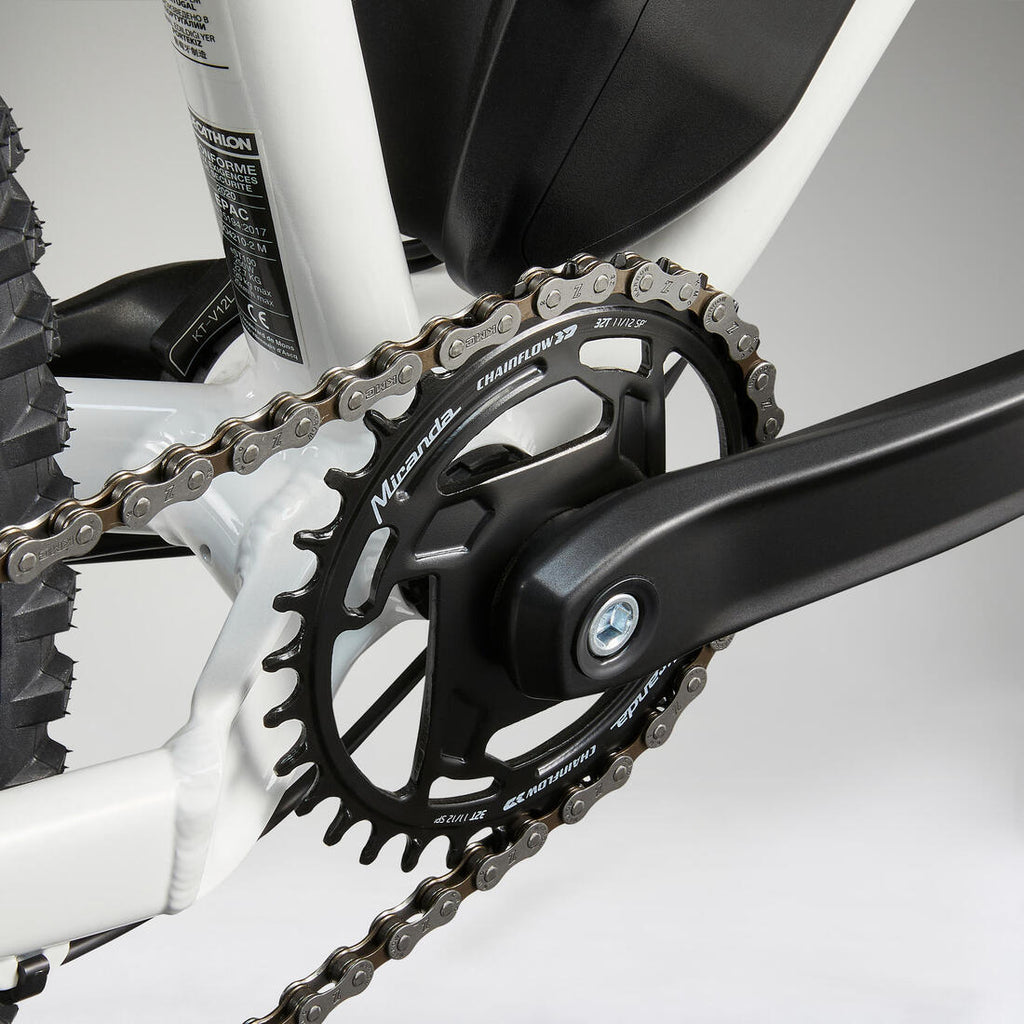

32 T chainring with chain guide
MICROSHIFT MS25 8-speed rear derailleur
Crank: 175 mm

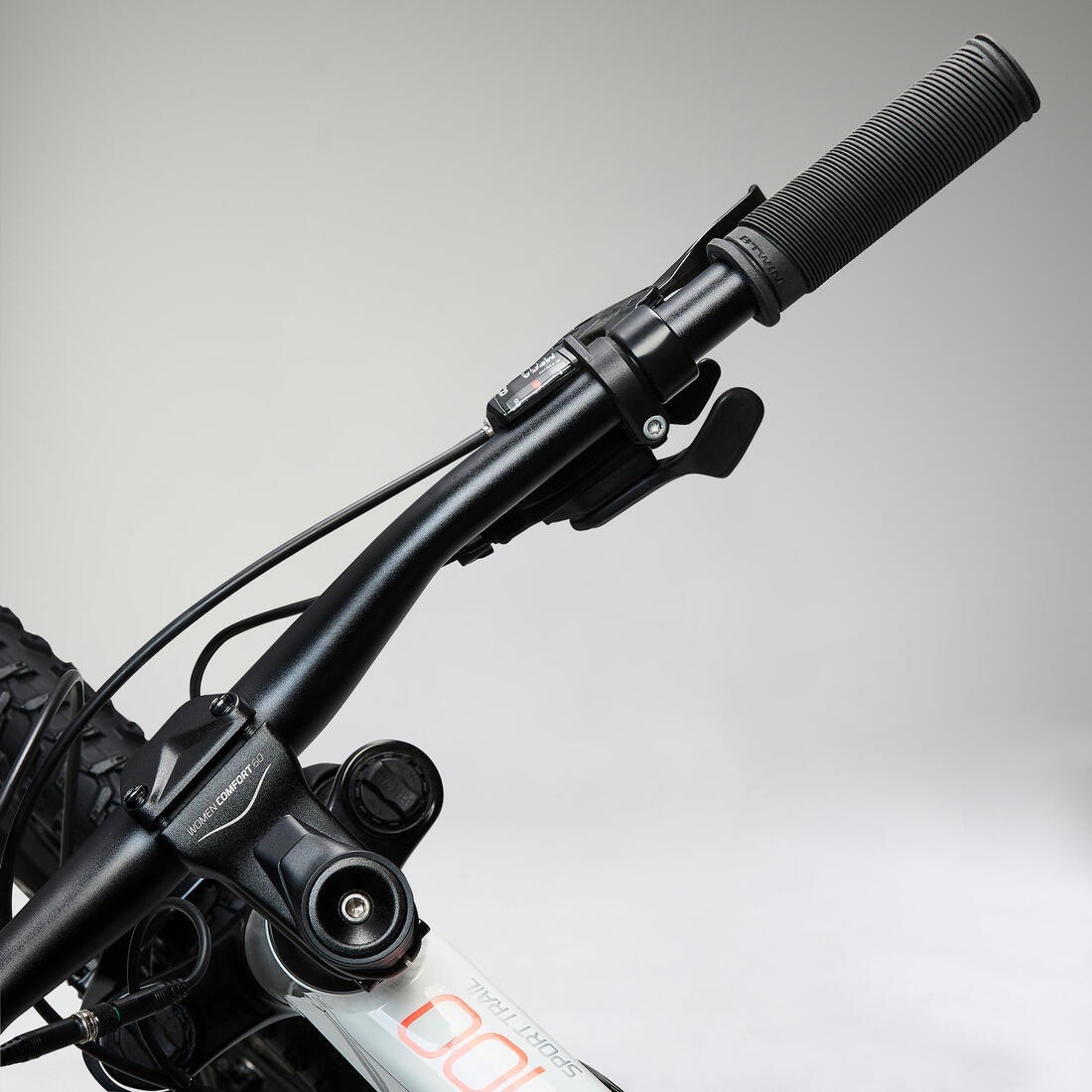

MICROSHIFT TS39 right shifter with speed indicator
MICROSHIFT H081 8-sprocket 11-34 T cassette
KMC Z7 chain

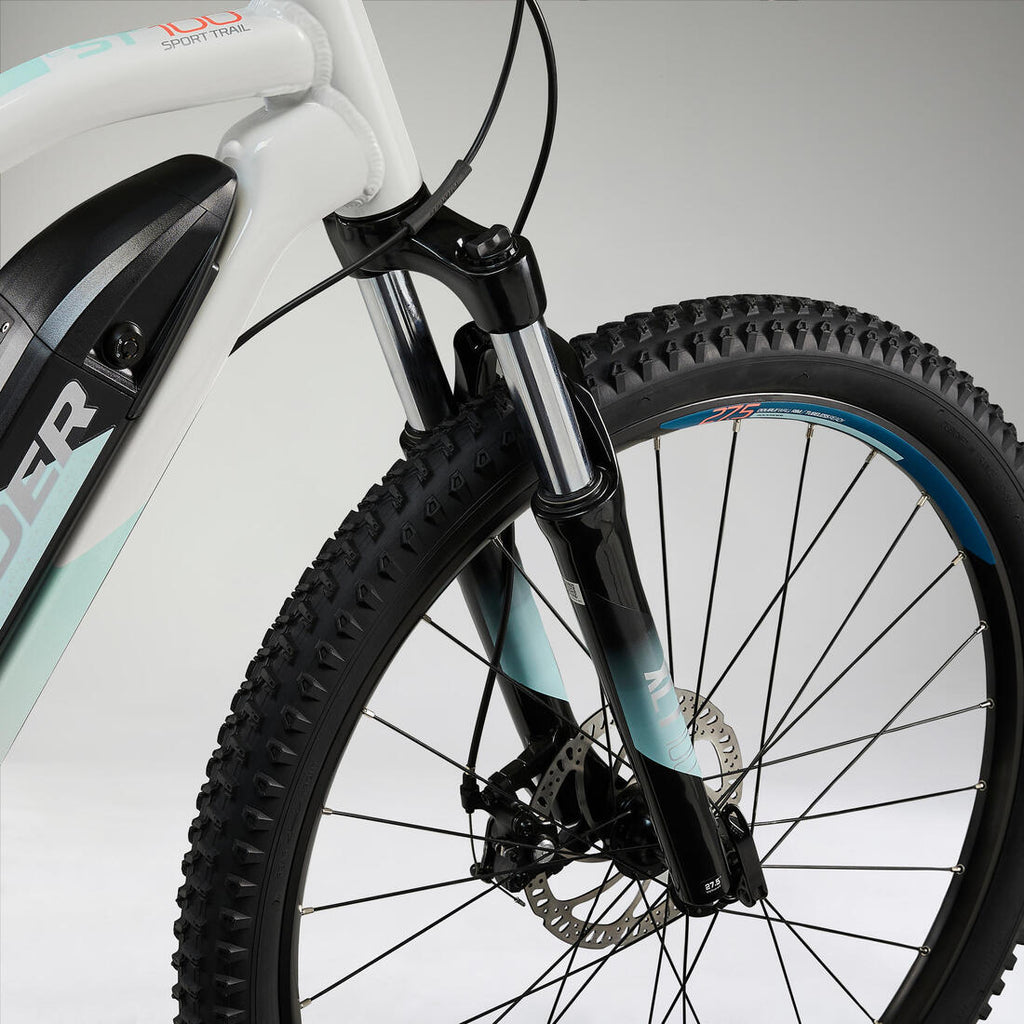

Suspension
SUNTOUR XCT 30 fork
Travel: 100 mm
Dampers: 30 mm
Axle: QR
Format: 9 x 100 mm
Tyres
ROCKRIDER ALL TERRAIN LIGHT (30 TPI) wide 2.2" tyres
